Description

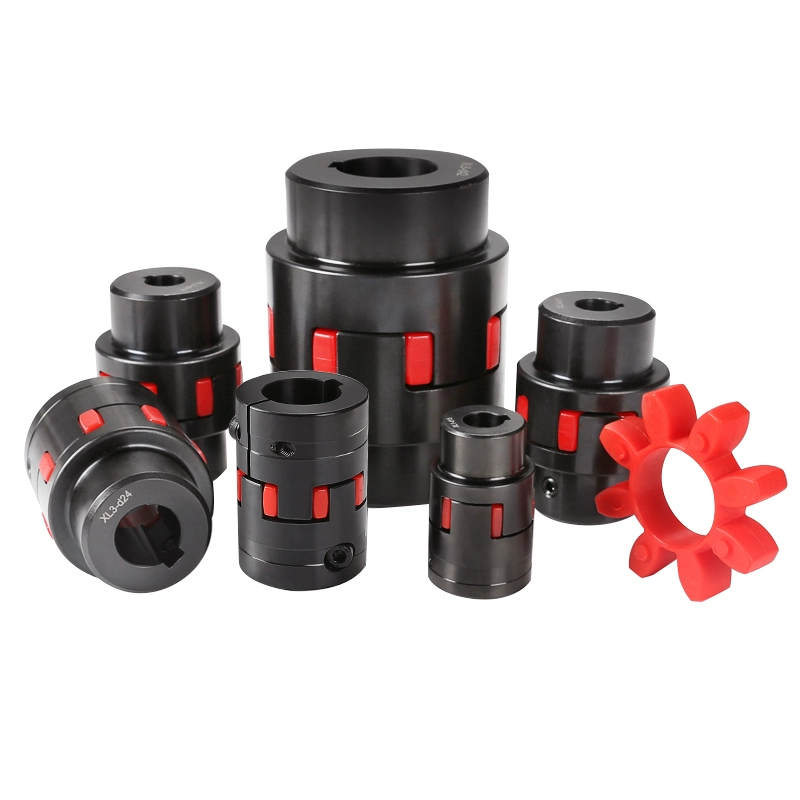

The XL3 jaw shaft coupling is designed for compact power transmission applications requiring vibration damping and misalignment compensation. It features precision-machined 45 carbon steel hubs combined with a high-elastic polyurethane spider, ensuring stable torque transfer and reduced shock loads. With a 64mm outer diameter and an overall length of 90mm, this coupling is ideal for CNC machines, servo motor systems, and light-duty industrial automation equipment.
Key Features
- Precision machined 45 carbon steel hubs
- High-elastic polyurethane spider for vibration damping and shock absorption
- Compensates for angular, radial, and axial misalignment
- Bore tolerance H7 for precise shaft fit
- Compact structure for space-limited installations
- Suitable for high-speed rotation up to 11,800 RPM
- Operating temperature range: -35°C to 80°C
⚠ Important Notice – Blind Bore Version
This product is supplied with an unmachined blind bore.
The coupling hub is delivered as a semi-finished component. Final bore machining, drilling, and keyway processing must be completed by the customer after receiving the product. Please ensure you have suitable machining capabilities before placing an order. Blind bore products are not eligible for return due to machining-related issues.
Technical Specifications
| Model | XL3 |
| Coupling Type | Jaw Coupling (Spider Coupling) |
| Outer Diameter (D) | 64 mm |
| Overall Length (L0) | 90 mm |
| Bore Diameter Range | 10 – 28 mm / 30 – 38 mm |
| Hub Pilot Diameter (D1, D2) | 48 mm / 64 mm |
| Single Bore Length (L) | 35 mm |
| Rated Torque | 190 Nm |
| Maximum Speed | 11,800 RPM |
| Hub Material | 45 Carbon Steel |
| Spider Material | Polyurethane |
| Operating Temperature | -35°C to 80°C |
| Bore Tolerance | H7 |
| Keyway Tolerance | JS9 |
| Blind Bore Status | Unmachined (Customer secondary processing required) |
Design Notes
- XL3 model uses a 4-jaw spider configuration
- Default configuration without stepped bore
- Bore tolerance H7 and keyway tolerance JS9 for reliable fit and transmission
- Custom bore sizes, stepped bores, and keyways are available upon request
Typical Applications
- CNC machine drive systems
- Servo motor and stepper motor connections
- Automation and positioning equipment
- Packaging machinery
- Light-duty industrial transmission systems
Spider (Elastomer Insert) Information
The jaw coupling uses a replaceable polyurethane spider to reduce vibration and shock loads.
- Standard spider: Red polyurethane elastomer
- Wear-resistant and oil-resistant for industrial use
- Replaceable design for easy maintenance
- Compatible spider model: GR28 (for XL3)
Selection & Installation Tips
- Ensure shaft dimensions match your required bore machining plan (H7 tolerance)
- Confirm the required torque does not exceed the rated torque
- Blind bore versions are delivered without internal machining — final machining is required by the customer
- For high-speed applications, ensure proper alignment during installation
- Contact us for custom bore combinations, special keyways, or stepped bore requirements
FAQ
Q: What is the difference between XL3 and other XL series sizes?
A: XL3 is a mid-size option in the XL series with increased torque capacity and larger bore ranges compared to smaller models, while still keeping a compact footprint for industrial equipment.
Q: Is this coupling suitable for reversing rotation?
A: Yes. Jaw couplings are suitable for bidirectional and reversing applications when properly installed and aligned.
Q: Can you provide custom bores and keyways?
A: Yes. We can provide custom bore sizes, stepped bores, and keyways upon request. Please share your shaft specifications when contacting us.
Explore Other Sizes
Looking for other sizes? Browse our XL Jaw Coupling Series to compare different outer diameters, torque ratings, and speed limits.
